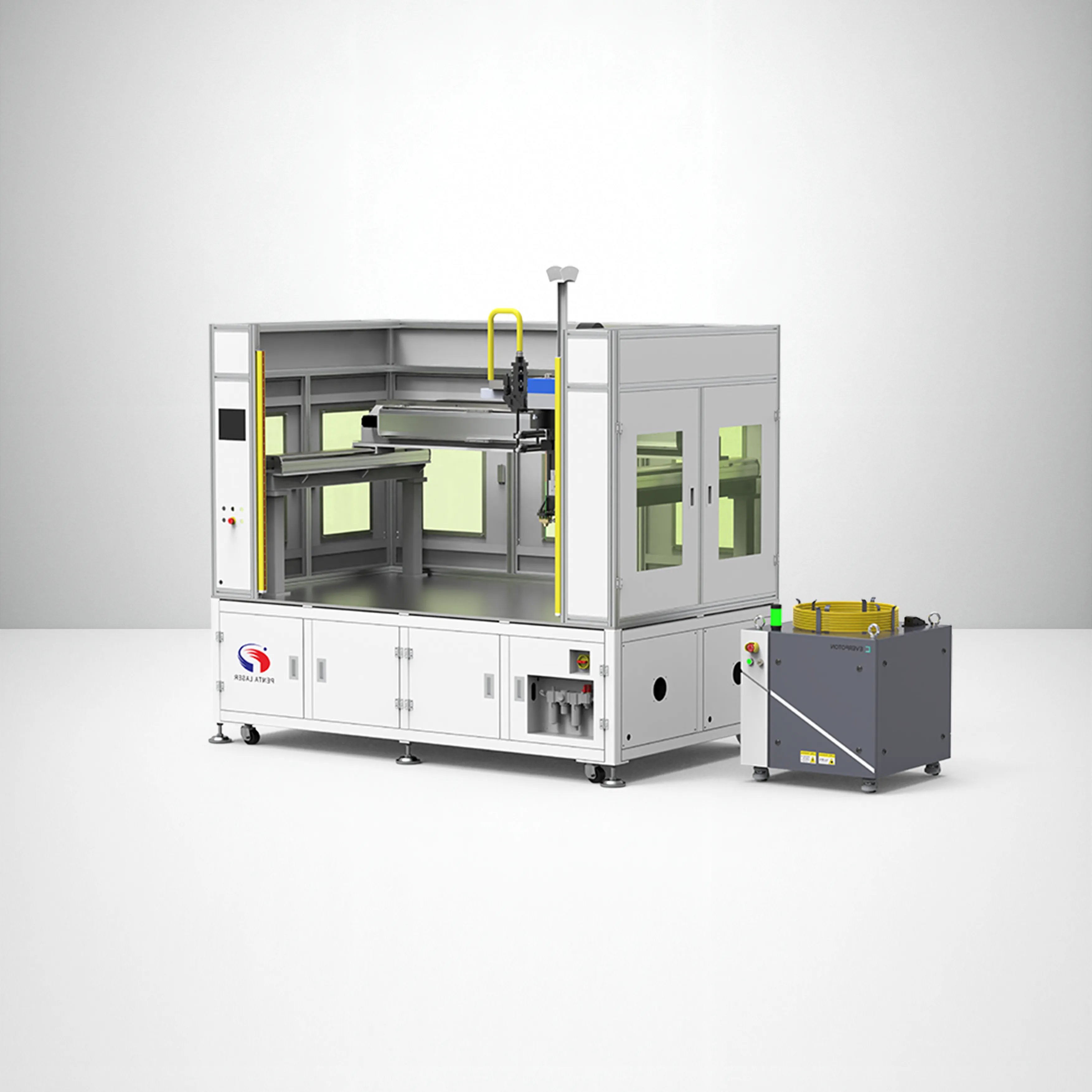

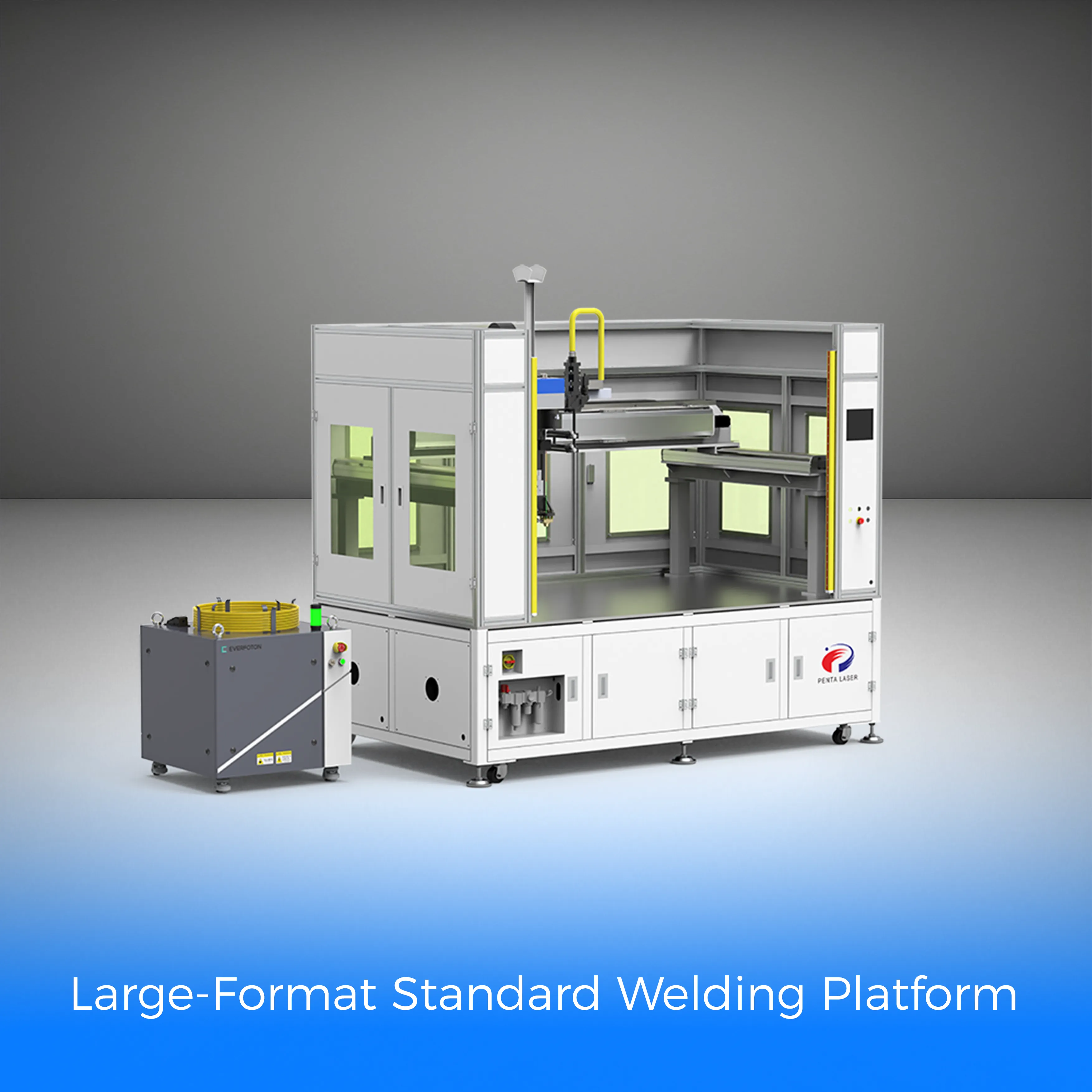

Large-Format Standard Welding Platform
Large-Format Standard Welding Platform
Penta Laser Large-Format Standard Welding Platform integrates high stability, high precision, high safety, and digitalization, making it the ideal solution for large-format, high-quality welding applications.
Product Details
Characteristics
· Gantry dual-drive and self-developed laser ensure stable performance and low failure rate.
· Optional coaxial CCD monitoring, CCD positioning, and laser ranging systems enhance welding quality.
· Full safety protection effectively shields operators from laser radiation.
· Collects process parameters including welding power and speed.
Optional Configurations
| Welding Rotary Positioner | Automatic Visual Positioning Calibration |
Technical Parameters
|
Model |
IPW 1210 |
|
Equipment Dimensions(mm) |
1200 × 1000 × 1800 |
|
Air Supply(MPa) |
0.5 - 0.7 |
|
Power Supply(Hz) |
380VAC50 |
|
Laser Type |
FFRC - H, FFRC - SM, FFRQ, FFSC |
|
Laser Power(W) |
300 - 6000 |
|
Welding Head Type |
Collimator Head, Swing Head, 2D Galvo, 3D Galvo |
|
Welding Dimensions(mm) |
500 × 300 × 200 |
*Some technical specifications may vary due to physical constraints related to the dimensions of the machine
Applications
 |  |  |
|
Sheet MetalStructural Parts
|

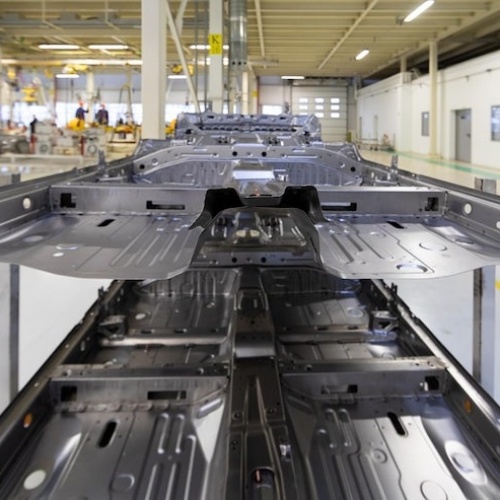

Automobile Parts
|
New Energy Sector
|
Recommended products

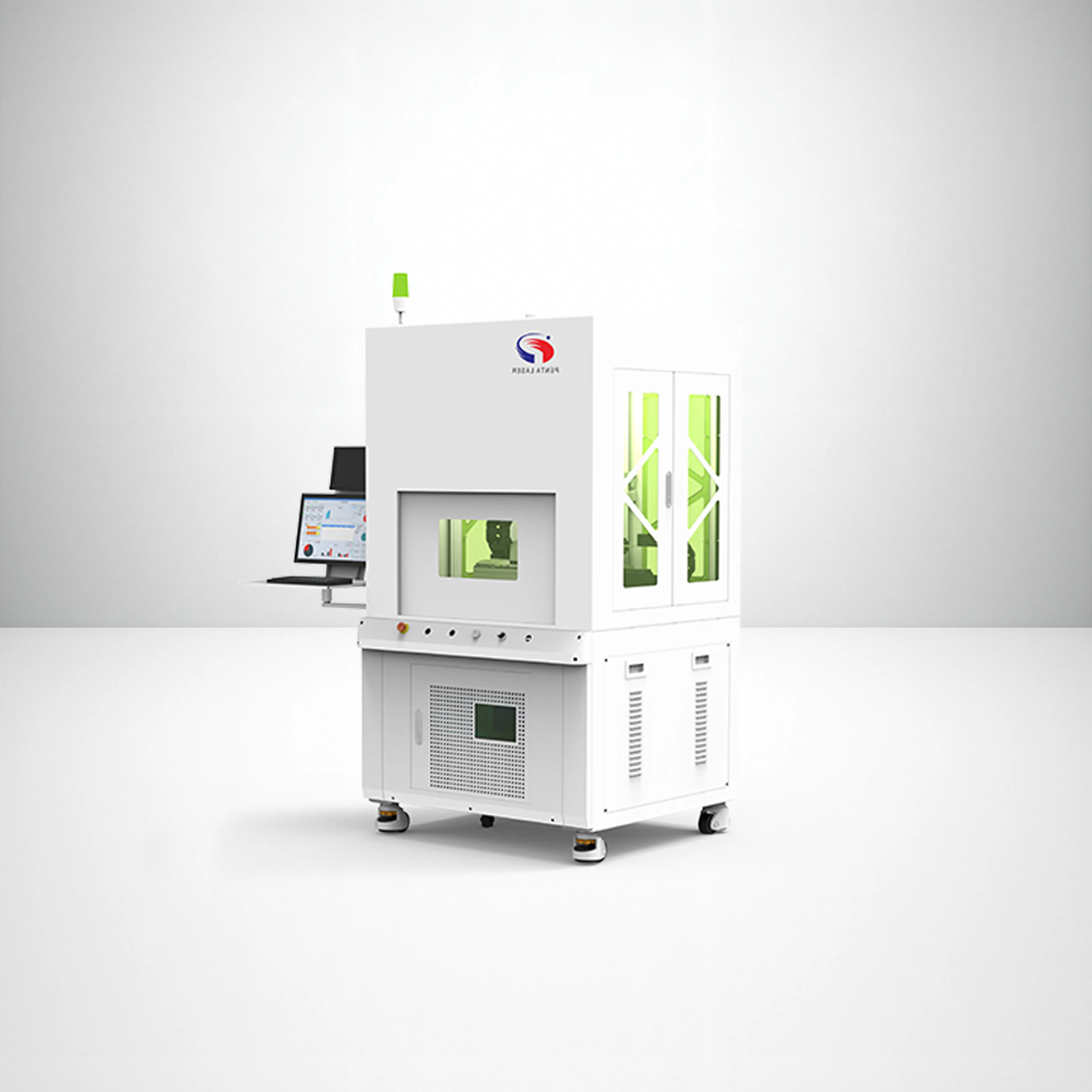

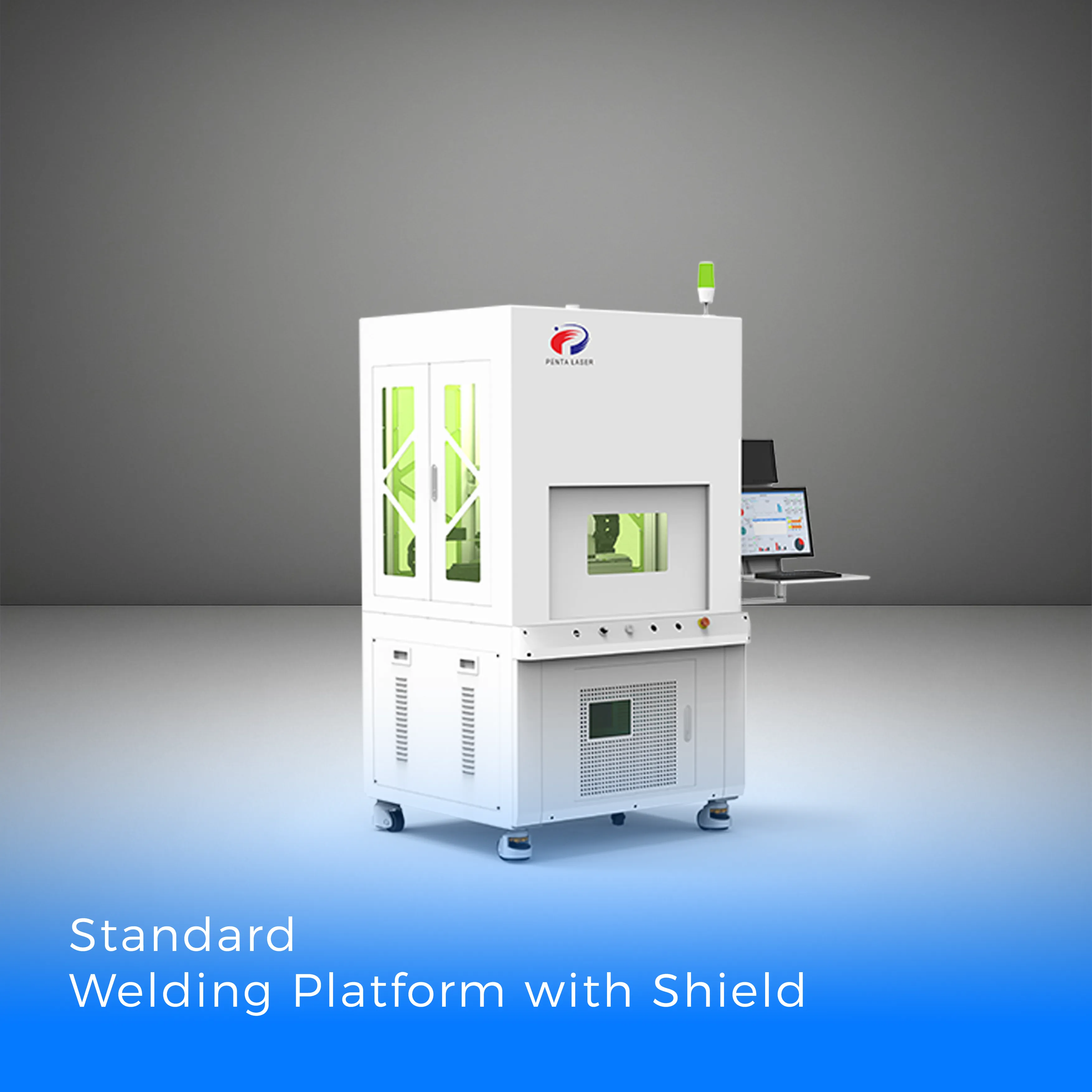

Standard Welding Platform with Shield
Penta Laser Standard Welding Platform series products are the preferred choice for welding equipment in the precision manufacturing sector, thanks to industry-customized process solutions, intelligent and efficient linkage control, a convenient and fast delivery system, and precise, controllable parameter management—safeguarding the welding production of clients across industries.
