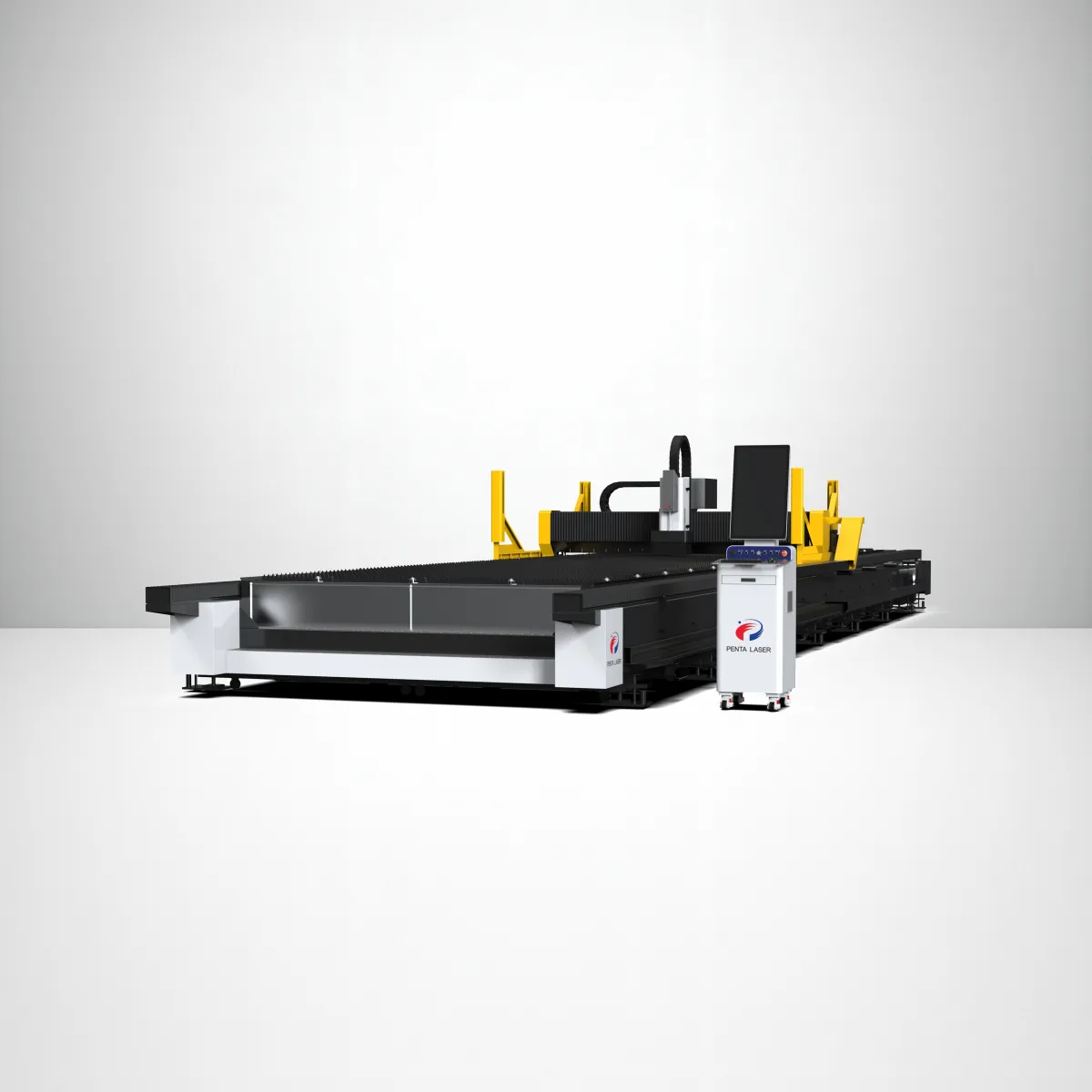

MINI BULL Series Laser Cutting Machine
MINI BULL Series Laser Cutting Machine
Penta Laser MINI BULL Series Laser Cutting Machine is an integrated high-power single-worktable machine, delivered as a complete unit for quick installation. The cutting area is fully sealed, and laser protection meets 2006/42/EC (CE standards) and FDA standards. The follow-type protective cover fully exposes the loading area, making material loading and unloading convenient. The control system adopts a safety dual-loop design, combined with a light curtain and a dedicated button on the cutting head, ensuring safe and reliable operation. Optional intelligent functions such as automatic beam centering and nozzle exchanger offer high efficiency and durability.
Product Details
Characteristics
· Extra-high tooth plate design supports auto loading / unloading, plus forklift or crane loading.
· Sealed AC electrical cabinet and separate gas cabinet for higher stability.
· Independent movable console with dual screens and ergonomic design for easy, comfortable operation.
· Optional auto beam centering, blue eye, gas mixed, etc., for high automation.
· Deliverable in standard HQ container for select models, e.g., two units of 3015 model can be loaded in one 40HQ container.
· Compatible with auto loading / unloading systems, e.g., 3015 model with our cantilever-type auto load / unload PLC.
Optional Configurations
|
Automatic Nozzle Exchanger
|
Blue Eye
|
|
Automatic Beam Centering
|
Gas Mixing
|
|
Automatic Loading and Unloading
|
Technical Parameters
|
Model |
MINI BULL 3015 / 4025 / 6025 |
|
Table Travel (m) |
X: 3100 / 4100 / 6200, Y: 1600 / 2550 |
|
Laser Power (kW) | 6 - 30 |
|
Maximum Speed (m/min) | 120 |
|
Maximum Acceleration (G) | 1 |
*Some technical specifications may vary due to physical constraints related to the dimensions of the machine
Applications
 |  |  |  |  |  |
|
Construction Machinery
|
Steel Structures
|
Special Vehicles
|
Shipbuilding
|
Energy Equipment
|
Mining Machinery
|
Recommended products
BULL V/CE Series Laser Cutting Machine
Penta Laser BULL V/CE Series Laser Cutting Machine is a large-format machine, featuring a modular design, allowing customization of different formats according to customer requirements. The entire machine is equipped with a fully enclosed cutting area, providing the highest level of mechanical and laser safety protection and fully complying with Directive 2006/42/EC (CE standards). It features a built-in intelligent system that automatically maintains the verticality of the cutting head and corrects any deviations using integrated software.

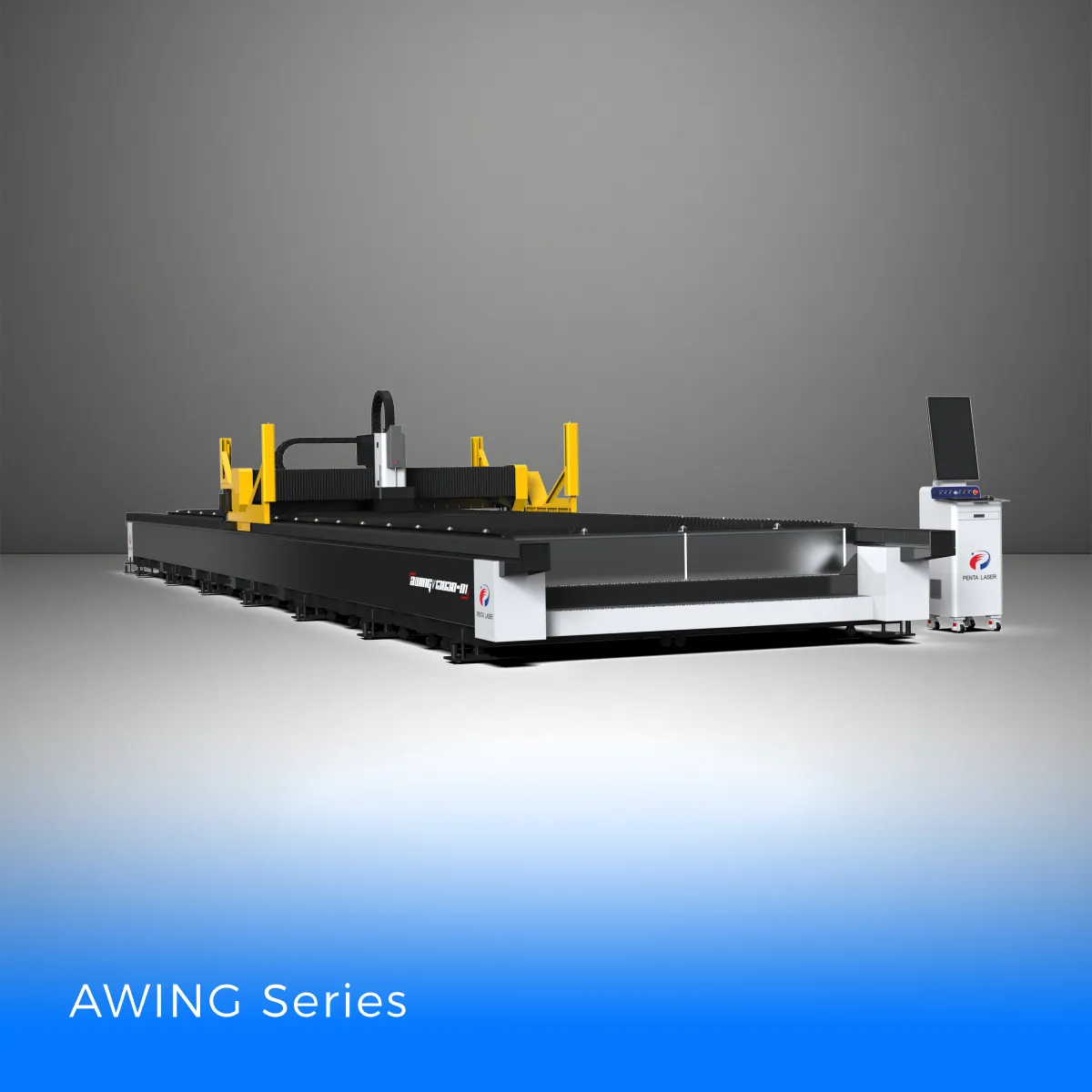

AWING Series Laser Cutting Machine
